    R32 6° Cnc Milling Threaded Button Bit Tungsten Carbide Reaming

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : Reaming Button Bit
    Delivery Time : 25 days
    Payment Terms : T/T or L/C
    Supply Ability : 20000 pieces per month
    Price : negotiation
    Certification : ISO
    • Product Details
    • Company Profile

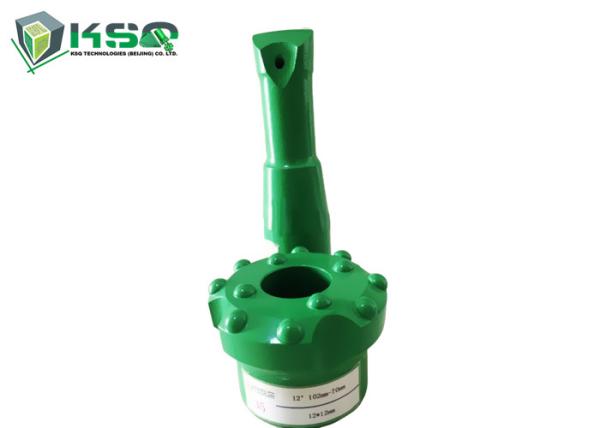

    R32 6° Cnc Milling Threaded Button Bit Tungsten Carbide Reaming

    R32 6° With CNC Milling Tungsten Carbide Threaded Reaming Button Bit


    Description

    Reaming drilling tools are used when a large diameter is needed to be reamed out after a pilot holes is drilled to a depth. We manufacture pilot reaming drilling tools, domed reaming button bits and adapter reaming button bits. Pilot reaming bits consist of pilot adapters and reaming bits, both domed bits and adapter reaming bits are integral. Dome bit is usually used when the pilot bit needs to enlarge the hole diameter after drilling to the specified depth.
    Thread: R25, R28, R32, R38, T38, T45, T51
    Pilot adapter diameter: 26mm ~ 40 mm.
    Reaming button bit diameter: 64mm ~ 152mm.


    This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.


    • Widely used in drifting and tunneling
    • R32 thread system


    Color: Based on Customer requirements


    Applications

    • Underground mining
    • Tunneling

    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

    Specification

    Product Code and Brief DescriptionAngle

    Front Flushing

    Holes

    Side Flushing

    Holes

    Weight

    (kg)

    RE1289-12D-R32, R32 Reaming Bit 12°35°--1.8
    RE12102-12D-R32, R32 Reaming Bit 12°35°--2.1
    RE12127-12D-R32-1, R32 Reaming Bit 12°35°--4.0
    RE12127-12D-R32-2, R32 Reaming Bit 12°35°--4.0
