    Mining Button Drill Bit

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : 4148300223-4148300232
    Delivery Time : 25 days
    Payment Terms : T/T or L/C
    Supply Ability : 20000 pieces per month
    Price : negotiation
    • Product Details
    • Company Profile

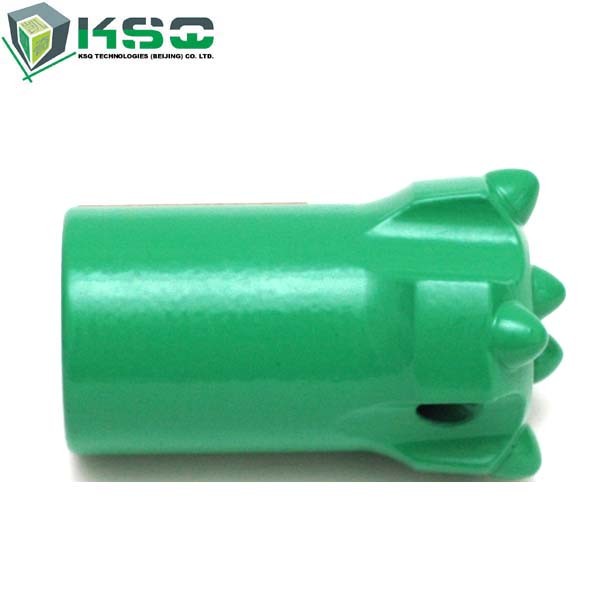

    Mining Button Drill Bit

    Description


    Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

    • Suitable for small hole range
    • Widely used in Dimensional Stone Quarrying Industry
    • Widely used in Underground Mining Industry


    Color: Green or Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process


    Type: 11° Tapered Button Bit Long Skirt



    Applications


    • Dimensional Stone Industry
    • Underground Mining
    • Tunneling



    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



    specification

    1

    <

    Part NumberBit Diameter (mm)Bit Diameter (inch)

    Front Buttons

    (No. x mm)

    Gauge Buttons

    (No. x mm)

    4148300223321 1/42x75x7
    4148300224331 2/72x75x7
    4148300225331 2/72x76x7
    4148300226351 3/82x76x7
    4148300227381 1/22x75x9
    4148300228411 5/82x75x9
    4148300229351 3/82x75x9
    4148300230361 3/72x75x9
    4148300231381 1/22x75x9
    4148300232411 5/82x75x9

    2

    <

    Product Code and Brief DescriptionAngle

    Front Flushing

    Holes

    Side Flushing

    Holes

    Weight

    (kg)

    BL732-11D-22, 11° Tapered Button Bit, Long Skirt35°110.3
    BL733-11D-22, 11° Tapered Button Bit, Long Skirt35°110.31
    BL833-11D-22, 11° Tapered Button Bit, Long Skirt40°110.31
    BL835-11D-22, 11° Tapered Button Bit, Long Skirt40°110.35
    BL738-11D-22, 11° Tapered Button Bit, Long Skirt35°110.41
    BL741-11D-22, 11° Tapered Button Bit, Long Skirt35°110.42
    BL735-11D-25, 11° Tapered Button Bit, Long Skirt35°110.38
    BL736-11D-25, 11° Tapered Button Bit, Long Skirt35°110.39
    BL738-11D-25, 11° Tapered Button Bit, Long Skirt35°110.41
    BL741-11D-25, 11° Tapered Button Bit, Long Skirt35°110.42
