    Tungsten Carbide Chisel Drill Bit

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : 4148300123-4148300134
    Delivery Time : 25 days
    Payment Terms : T/T or L/C
    Supply Ability : 20000 pieces per month
    Price : negotiation
    • Product Details
    • Company Profile

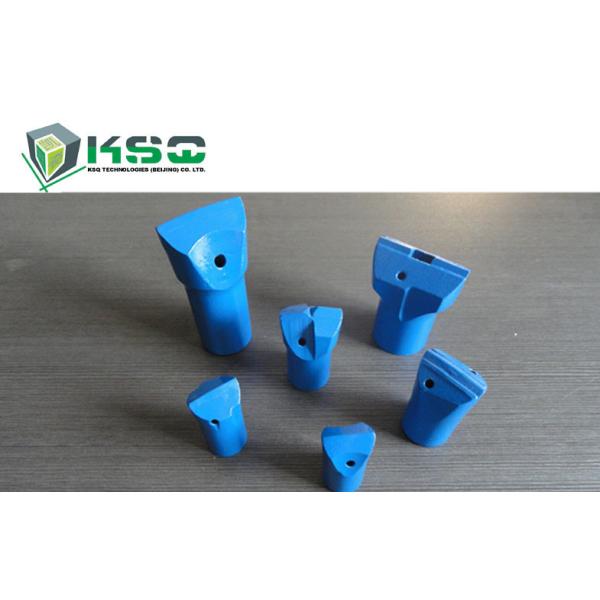

    Tungsten Carbide Chisel Drill Bit

    Description


    Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered chisel bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

    • Suitable for small hole range
    • Widely used in Dimensional Stone Quarrying Industry
    • Widely used in Underground Mining Industry


    Color: Green,Blue or Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process


    Type: 7° Tapered Flat Chipways Chisel Bit



    Applications


    • Dimensional Stone Industry
    • Underground Mining
    • Tunneling



    Competitive Advantage


    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



    specification

    <

    Part Number

    Product Code and

    Brief Description

    Bit Diameter

    (mm)

    Bit Diameter

    (inch)

    Tip Size

    (W x H, mm)

    Weight

    (kg)

    4148300123

    FC38-7D-23,

    7° Taper Flat Chipways Chisel Bit

    381 1/216 x 100.36
    4148300124

    FC40-7D-23,

    7° Taper Flat Chipways Chisel Bit

    401 4/716 x 100.38
    4148300125

    FC41-7D-23,

    7° Taper Flat Chipways Chisel Bit

    411 3/516 x 100.41
    4148300126

    FC42-7D-23,

    7° Taper Flat Chipways Chisel Bit

    421 2/316 x 100.43
    4148300127

    FC45-7D-23,

    7° Taper Flat Chipways Chisel Bit

    451 7/922 x 16 x 100.6
    4148300128

    FC46-7D-25,

    7° Taper Flat Chipways Chisel Bit

    461 4/522 x 16 x 100.61
    4148300129

    FC48-7D-25,

    7° Taper Flat Chipways Chisel Bit

    481 8/922 x 16 x 100.63
    4148300130

    FC50-7D-25,

    7° Taper Flat Chipways Chisel Bit

    50222 x 16 x 100.65
    4148300131

    FC56-7D-25,

    7° Taper Flat Chipways Chisel Bit

    562 1/524 x 16 x 100.82
    4148300132

    FC60-7D-25,

    7° Taper Flat Chipways Chisel Bit

    602 1/326 x 16 x 100.91
    4148300133

    FC65-7D-25,

    7° Taper Flat Chipways Chisel Bit

    652 5/926 x 16 x 101.12
    4148300134

    FC80-7D-25,

    7° Taper Flat Chipways Chisel Bit

    803 1/736 x 16 x 101.4
