    T45 70mm 76mm Spherical Threaded Button Rock Drill Bits

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : T45 70mm/76mm
    Delivery Time : 25 days
    Payment Terms : T/T or L/C
    Supply Ability : 20000 pieces per month
    Price : negotiation
    Certification : ISO
    • Product Details
    • Company Profile

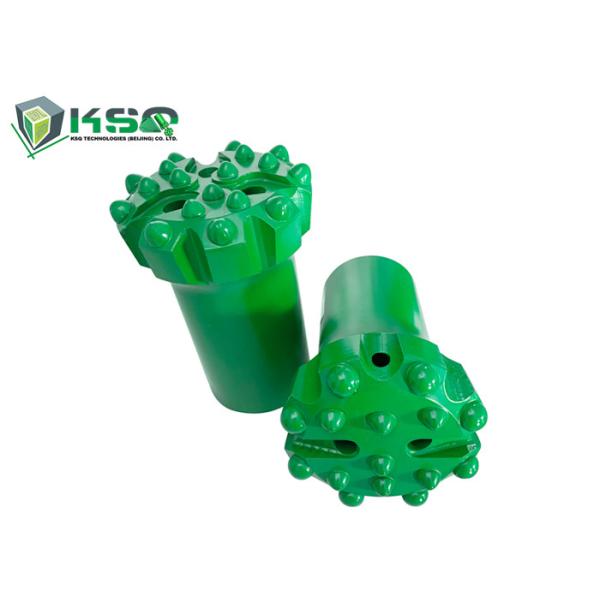

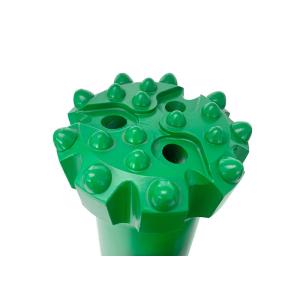

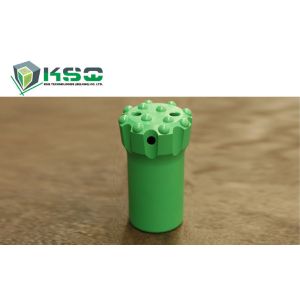

    T45 70mm 76mm Spherical Threaded Button Rock Drill Bits

    Description

    T45 button bits are widely used in Bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer Drilling.

    Our offers a complete selection of Top Hammer Drilling Tools to meet all of your drilling needs, which are suitable for any type of drilling application in mining, tunneling, construction and quarry work, and thread adapters in a full range of standard diameters.

    With the top quality of alloy steels and the best carbides, we produce all Top Hammer Drilling Tools by hot press technology and multiple heat-treated process to extend the product life for maximum wear and performance in the toughest of drilling conditions.


    Applications

    • Underground mining
    • Tunneling
    • Quarry


    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


    Notes:
    Special sizes may be available upon request.


    How to order?
    Button Bit:Diameter + Thread + Skirt Shape + Face Design + Insert Configuration


    Specification

    Part NumberProduct Code and Brief DescriptionBit Diameter (mm)Bit Diameter (inch)Front Buttons (No. x mm)Gauge Buttons (No. x mm)AngleFront Flushing HolesSide Flushing HolesWeight (kg)
    4148300811B1289-T45-S, T45 Button Bit, Spherical Buttons893 1/24x138x1340°2-4.6
    4148300812B1849-T45-S, T45 Button Bit, Spherical Buttons893 1/26x118x1235°2-4.6
    4148300813B1189-T45-S, T45 Button Bit, Spherical Buttons893 1/23x11, 2x116x1335°314.1
    4148300814B1389-T45-S-1, T45 Button Bit, Spherical Buttons893 1/24x11, 1x118x1235°4-4.6
    4148300815B1389-T45-S-2, T45 Button Bit, Spherical Buttons893 1/24x13, 1x138x1335°4-4.6
