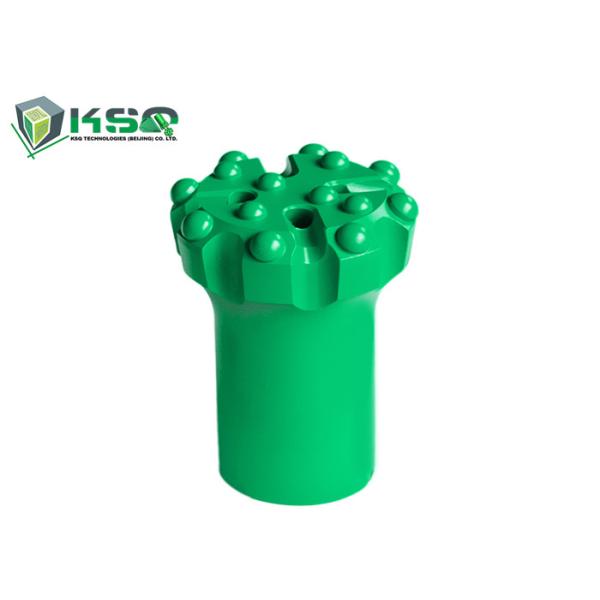

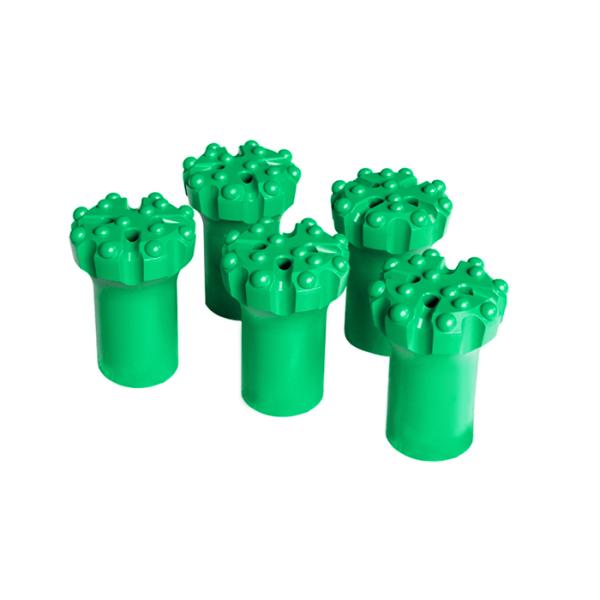

    ST58 Spherical CNC Milling 4.5 Inch Rock Button Drill Bit

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : ST58
    Delivery Time : 25 days
    Payment Terms : T/T or L/C
    Supply Ability : 20000 pieces per month
    Price : negotiation
    Certification : ISO
    • Product Details
    • Company Profile

    ST58 Spherical CNC Milling 4.5 Inch Rock Button Drill Bit

    ST58 Spherical CNC Milling 4.5 Inch Rock Button Drill Bit


    Description

    Thread drill bits are made by high quality alloy steel bar and tungsten carbides.

    Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks.

    In addition, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.


    • Widely used in bench and long hole drilling
    • Bit face design is ideal for medium-hard to hard abrasive rock

    Color: Green or Based on Customer requirements

    Material: Tungsten carbide and high strength alloy steel

    Processing: CNC milling and proprietary heat treatment process

    Type: ST58 Button Bit Spherical Buttons


    Applications

    • Underground mining
    • Tunneling
    • Quarry


    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


    Specification

    Part NumberProduct Code and Brief DescriptionBit Diameter (mm)Bit Diameter (inch)Front Buttons (No. x mm)Gauge Buttons (No. x mm)AngleFront Flushing HolesSide Flushing HolesWeight (kg)
    4148300981R1489-ST58-S-1, ST58 Retrac Button Bit, Spherical Buttons893 1/26x128x1435°215.1
    4148300982R1389-ST58-S, ST58 Retrac Button Bit, Spherical Buttons893 1/24x13, 1x138x1335°4-5.1
    4148300983R1589-ST58-S, ST58 Retrac Button Bit, Spherical Buttons10247x128x1435°216.5
    4148300984R1489-ST58-S-2, ST58 Retrac Button Bit, Spherical Buttons1154 1/26x148x1635°2-8.5
