6 Inch Hydraulic Pdc Drag Bit Drilling Carbon Steel With Long Bit
Life
PDC drill bit is mainly used for drilling soft-medium formation,
such as mud stone, limestone, shale, sandstone and granite etc.
pdc drill bit used to penetrate the degassing hole, drain hole, and
grouting hole of coal mine, water, road construction, bridge and
building .
pdc drill bit work under low drilling pressure, medium-low drive
speed ,big drainage.
Features:
- Long bit life: diamond compact cutter as the main cutting teeth,
its service life is more than 10 times that of carbide, 4 ~ 5 times
that of ordinary diamond bit;
- High drilling efficiency: a large quantity of diamond exposing
almost all (composite polycrystalline layer exposed), bit can
remain sharp, thus greatly improve the penetration rate;
- Low pressure and low speed drilling: bit by scratching, shear
broken rock, the weight on bit only with diameter diamond
impregnated bit drilling pressure by 1/3;
- Good effect of gauge: our compact bit can be set with
polycrystalline diamond gauge inside and outside, with high
resistance to wear, gauge performance is good, can make more
efficient use of cutting teeth;
- Wide range of use: the practice proves that the bit is suitable for
carbonate rock, limestone, chalk and clay rock, siltstone,
sandstone, such as soft, medium hard (hereinafter of rock drill
ability grade 9) formation drilling, compared with the average bit,
6-8 level of rock drilling, in particular, is especially
significant effect;
- Because of fast drilling rate and long service life, thus, fewer
drilling, drilling cost is reduced greatly, has the cost
performance.
PDC drill bit apply for rock formation
Type Formation | Soft(coal,Clay,Mudstone) | Medium hard (Rock, sandstone, limestone) | Very hard(Marble, flint,granite) |
| PDC concave drill bit | Concave three wings | F=1 | 2 | 3 | 4-5 | 6-7 | 7-8 | 8-10 | 10-12 | 13-15 | 16-18 | 18-20 | 20-25 |
| D=1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Concave four wings | √ | √ | √ | √ | √ | √ | √ | √ | | | | |
| √ | √ | √ | √ | √ | √ | √ | √ | √ | | | |
Specifications and models of non core diamond PDC bits:
Concave three-wings PDC drill bit is a drag type comprehensive
drilling bit,mainly used in coal mine,water conservancy and hydropower,buliding construction and other
industries.
| Model | Size(mm) | Model | Size(mm) |
| KSY56-3Y | 56 | KSY108-3Y | 108 |
| KSY60-3Y | 60 | KSY113-3Y | 113 |
| KSY75-3Y | 75 | KSY133-3Y | 133 |
| KSY94-3Y | 94 | KSY153-3Y | 153 |
| KSY98-3Y | 98 | KSY173-3Y | 173 |
About us
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ
Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical

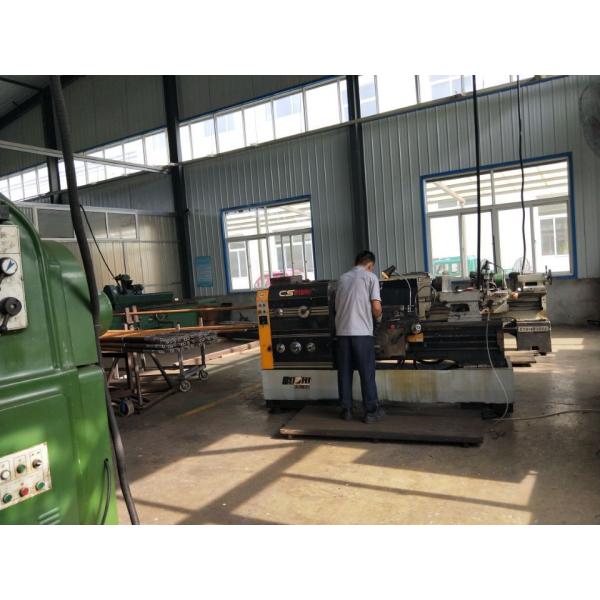

know-how in development, production, and application. The company
has adopted advanced manufacturing processes to ensure high quality
steels and tungsten carbide inserts for its rock drilling
accessories. Its personnel understand clients’ drilling needs, and
have the service skills to recommend the right drilling tools for
the job. Its experienced product developers can also create custom
tools. Furthermore, the company’s development team introduces
innovative products each year – tools that are rigorously tested in
the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
