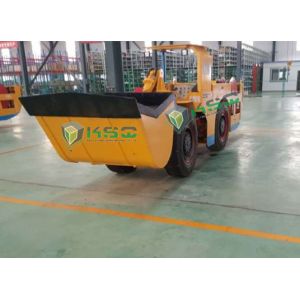

    White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001

    Ask Lasest Price
    Brand Name : ROXMECH
    Model Number : RL-1 Load Haul Dump Machine/ScoopTram
    Certification : CE, ISO
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Delivery Time : 2 Months
    Price : negotiation
    • Product Details
    • Company Profile

    White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001

    Applications:

    • Underground Mining
    • Hydropower Tunneling
    • Roadway/Railway Tunneling
    • Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
    Operation Advantage:
    The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.
    The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.

    Main Technical Configuration:


    1 Rated Bucket Capacity1m3
    2 Rated Load Capacity2t
    3 Maximum Relieving Force48kN
    4 Maximum Traction56kN
    5 Driving Speed0-10km/h
    6 Maximum Climbing Capacity20°
    7 Maximum Discharge Height1050mm
    8 Minimum Discharge Distance860 mm
    9 Working time11s
    10 Minimum Turning Radius4260mm(Outboard of bucket)
    2540mm(inside of back wheel)
    11 Maximum Steering Angle±38°
    12 Minimum Ground Clearance200mm
    13 Rear Axle Swinging Angle±8°
    14 Weight of the Whole Machine6.75t
    15 Size
    Length(Bucket in haul position)5850mm
    Width1300mm
    Height of the Cab2000mm

    Finished Products in factory

    Load Haul Dump Machine.jpgscoop tram.jpg


    Packaging & Shipping

    Load in Container for Scoop tramp.jpgLoad in container for scraper.jpgLoad haul dump machine for tunnel.jpgscoop tram .jpg


    Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|


    Company Information

    ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
    equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
    Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
    Service Vehicles, and Personnel Carriers.
