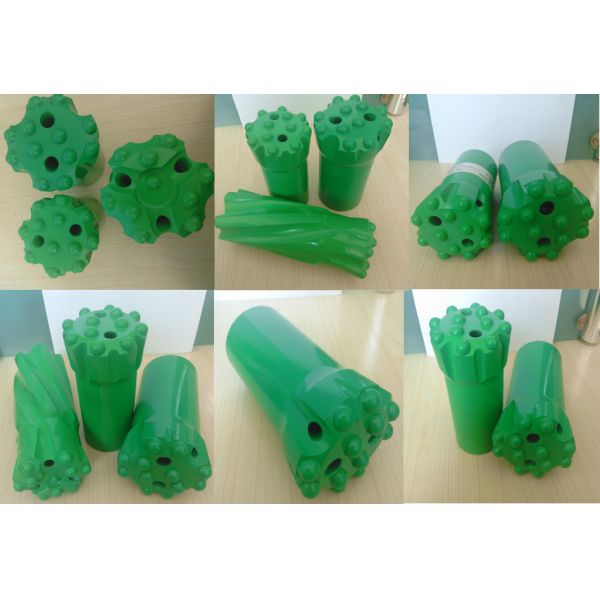

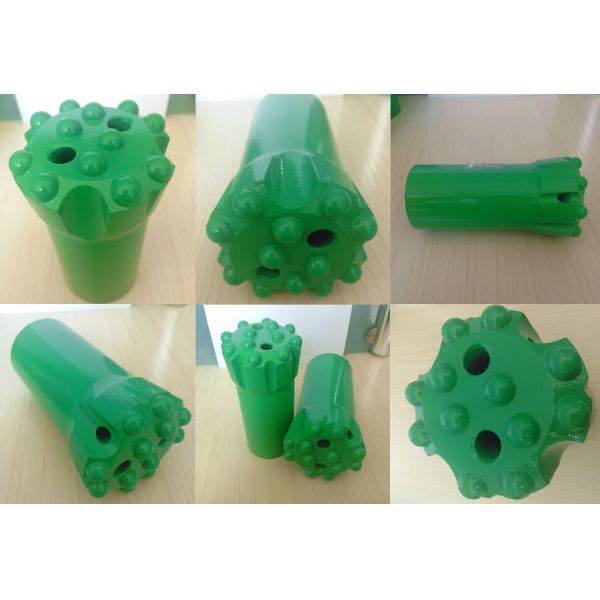

Threaded T38 / R38 Ballistic Button Drill Bit with Tungsten Carbide
Button
Tungsten carbide rock bit
1)Our tungsten carbide rock bits are made with high quality alloy
steel and tungsten carbide.
2)Our tungsten carbide rock bits through heat treatment so that it
can withstand the impact
of drilling.
3)The thread of tungsten carbide rock bits:R22, R25, R32, R38, T38,
T45, T51
4)Our tungsten carbide rock bits suitable for all kinds of
rock—Soft rock, loose-medium rock, hard rock and any other special
formations.
5)tungsten carbide rock bits face design: flat face, dome face,
drop center face.
6)tungsten carbide rock bits have four kinds of button
type:Spherical button, Parabolic button,
Conical button, Ballistic button
7)Our tungsten carbide rock bits are widely used in mining,
construction machinery, Tunnel,
Subway, Etc.
8)Our tungsten carbide rock bits can be made as customers’
requirements and our company
responses
for any quality problem caused by default of material
Bit face shape selection:
1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock
formations. Low to medium
air pressures. Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and
homogenerous rock
formations. Good hole deviation control and good flushing capacity.
3. Convex Face
For high penetration rates in soft to medium-hard with low to
medium air pressures. It is the most
resistance to steel wash, and may reduce the load and wear on the
gauge buttons, but poor hole
deviation control.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in
medium to hard rock formations.
Designed for high air pressures and good resistance to steel wash
step gauge bit.
5. Flat Face Bit
This kind of face shape is suitable for hard to very hard and
abrasive rock formations in
applications with high air pressures. Good penetration rates an resistance to
steel wash.
Specifications
our dominant drill bits are chisel bits, cross bits, buttons bits,
DTH bits
We are a professional company which is specialized in making and
researching on drilling equipments as well, and our dominant
products are chisel bits, cross bits, buttons bits, DTH bits with
high, medium and low air pressure, symmetric drilling tools,
eccentric drilling tools, standardized API system casings, bit
shanks and casing tubes which are fit for hydraulic drilling
equipments.
Mainly Products
Thread Drill Bits---Diameter: 51mm to 127mm
Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51
Drill Rod
Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.
Thread Rod---R25,R28,R32,R38,T38,T45,T51.
Integral Drill Rod---H19/H22, Diameter---20mm - 42mm
| T51 button bit | | | | |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| mm | Front | Gauge | Front | Side | kg |
| 1 | 89 | 3x11, 2x11 | 6x13 | 4 | - | 4.9 |
| 2 | 102 | 3x13, 2x13 | 6x14 | 3 | 1 | 5.2 |
| 3 | 115 | 6x14 | 8x14 | 2 | - | 6.8 |
| 4 | 127 | 4x16, 2x13 | 8x16 | 4 | - | 7.5 |
| T45 button bit | | | | |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| mm | Front | Gauge | Front | Side | kg |
| 1 | 70 | 3×11, 1×19 | 6×11 | 3 | - | 2.2 |
| 2 | 76 | 3×11, 1×11 | 6×13 | 3 | - | 2.4 |
| 3 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 4.1 |
| 4 | 102 | 3×13, 2×13 | 6×14 | 3 | 1 | 4.5 |
| T38 button bit | | | | |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| mm | Front | Gauge | Front | Side | kg |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
| R38 button bit | | | | |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| mm | Front | Gauge | Front | Side | kg |
| 1 | 64 | 3×11 | 6×12 | 3 | - | 1.8 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 2 | - | 2.6 |
| 4 | 89 | 4×13, 1×13 | 8×13 | 4 | - | 3.3 |
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater
to the needs of the construction and mining industries, with
consideration on providing solutions to the following unique
problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be
followed
- Significant differences in the way people work, mostly due o
physical constraints
- Avoiding downtime on major equipment which can cost tens of
thousands of dollars per hour. The best solution with the most
reasonable cost is a significant driver.
