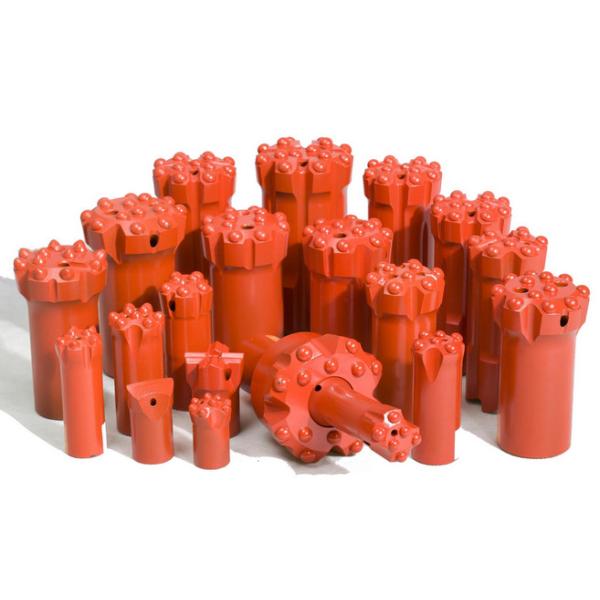

Tungsten Carbide Rock Drill Bit , Ballistic Standard Thread Button
Bit
We are KSQ Technologies (Beijing) Co. Ltd., a company that provides
the
high quality and cost effective MIROC Rock Drilling that serve mining,
construction, tunneling and quarry projects around the world. Our MIROC
Rock Drilling Tools product line is the result of years of advanced
engineering, precision manufacturing and dedication to the use of
high
quality materials. We has adopted advanced manufacturing processes to
ensure high quality steels and tungsten carbides
for its rock drilling accessories.
Main Products:
1. Integral Drill Rods, Plug Hole Rods
Shank : H22x108mm, H19x108mm, standard hex.;
Bit diameters: 29-40mm;
Length: 400mm-8000mm;
2. Tapered Drilling Tools
Taper Bit: 7, 11, 12 degree Taper Button bits, Cross bits and
Chisel bits;
Diameter: 20mm- 60mm ;
Taper Rod
Shank Type: H22x 108mm, Shank H25x159mm;
Length: 600-6000mm;
3. Threaded Rock Drilling Tools
Thread: H25,R25, R28, R32, R38, T38,T45, T51, ST58, GT60 Drill Bit;
Bit Body: Button Bit, Reaming Bit, Cross Type Bit, Retrac Button
Bit.
| ST58 button bit |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| mm | Front | Gauge | Front | Side | kg |
| 1 | 89 | 4x13, 1x13 | 8x13 | 4 | - | 4.1 |
| 2 | 95 | 4x13, 1x13 | 8x14 | 4 | - | 4.6 |
| 3 | 102 | 6x14 | 8x14 | 2 | - | 6 |
| 4 | 115 | 6x14 | 8x16 | 2 | - | 7 |
| T51 button bit |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| mm | Front | Gauge | Front | Side | kg |
| 1 | 89 | 3x11, 2x11 | 6x13 | 4 | - | 4.9 |
| 2 | 102 | 3x13, 2x13 | 6x14 | 3 | 1 | 5.2 |
| 3 | 115 | 6x14 | 8x14 | 2 | - | 6.8 |
| 4 | 127 | 4x16, 2x13 | 8x16 | 4 | - | 7.5 |
| T45 button bit |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| mm | Front | Gauge | Front | Side | kg |
| 1 | 70 | 3×11, 1×19 | 6×11 | 3 | - | 2.2 |
| 2 | 76 | 3×11, 1×11 | 6×13 | 3 | - | 2.4 |
| 3 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 4.1 |
| 4 | 102 | 3×13, 2×13 | 6×14 | 3 | 1 | 4.5 |
| R38 button bit |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| mm | Front | Gauge | Front | Side | kg |
| 1 | 76 | 3×11, 1×11 | 6×12 | 2 | - | 2.6 |
| 2 | 89 | 4×13, 1×13 | 8×13 | 4 | - | 3.3 |
| R32 button bit |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| 1 | 48 | 2×9 | 5×11 | 1 | 1 | 0.9 |
| 2 | 51 | 2×10 | 5×11 | 1 | 1 | 1 |
| 3 | 57 | 3×9 | 6×11 | 3 | - | 1.3 |
| 4 | 76 | 4×11 | 8×11 | 2 | - | 2.8 |
| R28 button bit |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| mm | Front | Gauge | Front | Side | kg |
| 1 | 37 | 2×7 | 5×9 | 1 | 1 | 0.5 |
| 2 | 45 | 2×9 | 5×10 | 1 | 2 | 0.9 |
| 3 | 48 | 2×9 | 5×11 | 1 | 2 | 1 |
| R25 button bit |
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| 1 | 32 | 1x8 | 3x8 | 1 | 1 | 0.24 |
| 2 | 33 | 2x7 | 5x7 | 2 | 1 | 0.26 |
| 3 | 41 | 2x7 | 5x9 | 1 | 1 | 0.42 |
| 4 | 42 | 2x8 | 5x9 | 1 | 1 | 0.43 |
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater
to the needs of the construction and mining industries, with
consideration on providing solutions to the following unique
problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be
followed
- Significant differences in the way people work, mostly due to
physical constraints
- Avoiding downtime on major equipment which can cost tens of
thousands of dollars per hour. The best solution with the most
reasonable cost is a significant driver.
