Diameter 32mm - 5 Tip And 36mm With 6 Tip Rock Drill Bits For 7
Degree Drill Rod
Tapered equipment affords drillers the ability to change drilling
bits whilst still using the same drilling rod. Drillers choose
tapered cross type bits if the goal is to minimize hole deviation
in small hole range drilling. Different taper sizes have different
characteristics when it comes to the “knock-off” index – the
smaller angle will prevent the bit from spinning. Used in drifting
and tunneling.
Basic Information:
Taper drill bit- Taper 7° Taper, 11°, Taper 12°
Product Name: | mining tungsten carbides taper button rock drill tool bit |
Types | Tapered chisel bits, Tapered cross bits, Tapered button bits |
Application:: | Tapered drill bits are used in granite and marble quarry, gold
mine, railway, tunnel, etc. for drilling |
Feature: | Tapered drill bits connect tapered drill steel of rock drill for
drilling holes |
Material: | High quality carbide and high quality steel |
MOQ: | No requirement for testing and trial order |
We can design and manufature according to your requirment of
diameter, number air holes and carbide button shape. |
Types of drill bits | Diameter (mm) | Taper Angle (Degree) | Length (mm) | Weight (kg) |
Tapered chisel bits | 20/22/28/30/32/34/36/38/40 | 4 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree | 50/55/60/71/80 | 0.15 - 0.45 |
Tapered cross bits | 24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55 | 50/55/60/71/80 | 0.18 - 0.7 |
Tapered button bits | 28/29/30/32/33/34/35/36/37/38/40/41/42/45 | 50/55/60/71/80 | 0.2 - 0.5 |
Specification
TAPERED ROCK DRILLING TOOLS - 7° Button bit, short skirt
Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number |
mm | inch | Front | Gauge | Angle | Front | Side | kg |
32 | 1 1/4 | 1x8 | 3x8 | 35° | 1 | 1 | 0.24 | 4148300157 |
33 | 1 2/7 | 2x7 | 5x7 | 35° | 2 | 1 | 0.26 | 4148300158 |
34 | 1 1/3 | 2x7 | 4x7 | 40° | 1 | 1 | 0.29 | 4148300159 |
35 | 1 3/8 | 2x7 | 5x8 | 35° | 1 | 1 | 0.33 | 4148300160 |
36 | 1 3/7 | 1x8 | 3x9 | 40° | 1 | 1 | 0.37 | 4148300161 |
36 | 1 3/7 | 2x7 | 5x8 | 35° | 1 | 1 | 0.37 | 4148300162 |
38 | 1 1/2 | 1x8 | 3x9 | 35° | 1 | 1 | 0.37 | 4148300163 |
38 | 1 1/2 | 2x7 | 5x8 | 35° | 1 | 1 | 0.38 | 4148300164 |
38 | 1 1/2 | 2x7 | 5x9 | 40° | 2 | 1 | 0.38 | 4148300165 |
40 | 1 4/7 | 1x8 | 3x9 | 30° | 1 | 1 | 0.38 | 4148300166 |
40 | 1 4/7 | 1x9 | 3x10 | 30° | 1 | 1 | 0.4 | 4148300167 |
40 | 1 4/7 | 1x9 | 3x9 | 35° | 1 | 1 | 0.4 | 4148300168 |
40 | 1 4/7 | 2x7 | 5x9 | 35° | 1 | 1 | 0.4 | 4148300169 |
42 | 1 2/3 | 1x8 | 3x9 | 30° | 1 | 1 | 0.4 | 4148300170 |
42 | 1 2/3 | 1x9 | 3x10 | 30° | 1 | 1 | 0.43 | 4148300171 |
42 | 1 2/3 | 1x9 | 3x9 | 35° | 1 | 1 | 0.43 | 4148300172 |
42 | 1 2/3 | 2x8 | 5x9 | 35° | 1 | 1 | 0.43 | 4148300173 |
TAPERED ROCK DRILLING TOOLS - 7° Button bit, long skirt
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number |
| mm | inch | Front | Gauge | Angle | Front | Side | kg |
32 | 1 1/4 | 2x7 | 5x7 | 35° | 1 | 1 | 0.3 | 4148300174 |
33 | 1 2/7 | 2x7 | 5x7 | 35° | 1 | 1 | 0.31 | 4148300175 |
35 | 1 3/8 | 2x7 | 5x8 | 35° | 1 | 1 | 0.36 | 4148300176 |
38 | 1 1/2 | 2x7 | 5x9 | 35° | 1 | 1 | 0.41 | 4148300177 |
41 | 1 3/5 | 2x7 | 5x9 | 35° | 1 | 1 | 0.42 | 4148300178 |

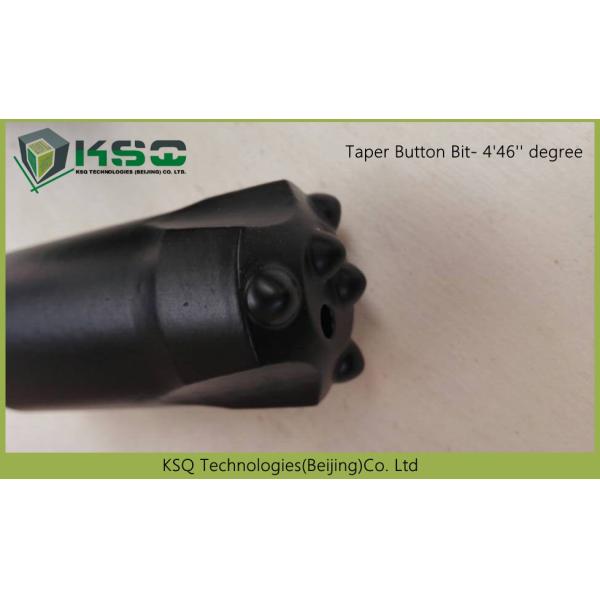

Pictures
KSQ Related Rock Drilling Tools
(1) Integral Drill Rod– chisel bit integral rod and plug hole
integral drill steel,
Shank H19 x 108mm and H22 108mm.
(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit,
drill rod of taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop
center button bit, dome bit, reaming bit,extension rod, MF-Rod, Hex
rod, coupling sleeve, crossover coupling of thread R25, R28, R32,
R38, T38, T45, T51, ST58, ST68.
(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, ,
Furukawa, Gardner Genver, Ingersoll Rand etc.
(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8''
hammer and DTH button bit (diameter 80mm - 305mm)
Other products: Tricone bits, PDC bits, self- drilling hollow
anchor bar etc.
