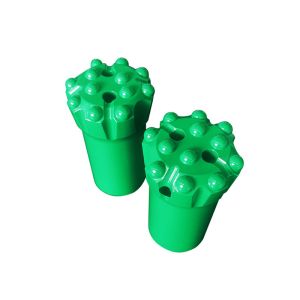

    Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : T45
    Delivery Time : 25 days
    Payment Terms : T/T or L/C
    Supply Ability : 20000 pieces per month
    Price : negotiation
    Certification : ISO
    • Product Details
    • Company Profile

    Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical

    CNC T45 Dia70-89mm Mining Rock Spherical Button Drill Bit


    Description

    Threaded button bits for rock drilling, a kind of top hammer drill bit and rock drill bit, is mainly used with hydraulic drill rods (pneumatic drill rods) and hydraulic rock drills (or pneumatic rock drills) in top hammer drilling. Button bits rock drilling use different forms of threads to cooperate with the drill rod to perform drilling operations.


    • Widely used in bench and long hole drilling
    • Bit face design is ideal for medium-hard to hard abrasive rock

    Color: Green or Based on Customer requirements

    Material: Tungsten carbide and high strength alloy steel

    Processing: CNC milling and proprietary heat treatment process

    Type: T45 Button Bit Ballistic Buttons


    TypeThread Button Bit
    Materialtungsten carbide
    UseOre Mining, quarry,mining,blasting,construction,open bit etc.
    Advantageshigh quality and factory prices
    Boby typeNormal type or retrac type
    ThreadR22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68
    Tungsten carbideSpherical, ballistic,Conical,Hemispherical
    Fact typeDrop Center, Flat Face, Convex, Concave, etc
    ColorAccording to your requirements

    Applications

    • Underground mining
    • Tunneling
    • Quarry


    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


    Specification

    Product Code and Brief Description

    Angle

    Front Flushing

    Holes

    Side Flushing

    Holes

    Weight

    (kg)

    B1070-T45-B, T45 Button Bit, Ballistic Buttons

    35°

    3

    -

    2.2

    B1370-T45-B, T45 Button Bit, Ballistic Buttons

    35°

    4

    -

    2.2

    B1276-T45-B, T45 Button Bit, Ballistic Buttons

    40°

    2

    -

    2.6

    B1376-T45-B-1, T45 Button Bit, Ballistic Buttons

    35°

    2

    1

    2.6

    B1076-T45-B, T45 Button Bit, Ballistic Buttons

    35°

    3

    1

    2.4

    B1376-T45-B-2, T45 Button Bit, Ballistic Buttons

    35°

    4

    -

    2.6

    B1376-T45-B-3, T45 Button Bit, Ballistic Buttons

    35°

    4

    -

    2.6

    B1279-T45-B, T45 Button Bit, Ballistic Buttons

    40°

    2

    -

    4.6

    B1489-T45-B, T45 Button Bit, Ballistic Buttons

    35°

    2

    -

    4.6

    B1189-T45-B, T45 Button Bit, Ballistic Buttons

    35°

    3

    1

    4.1

    B1389-T45-B-1, T45 Button Bit, Ballistic Buttons

    35°

    4

    -

    4.6

    B1389-T45-B-2, T45 Button Bit, Ballistic Buttons

    35°

    4

    -

    4.6
