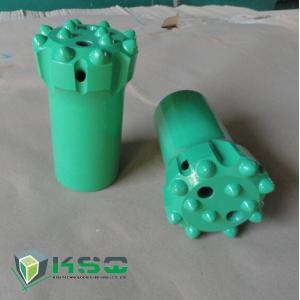

    Hight Quality T45 89mm Tungsten Carbide Threaded Button Bits

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : Button Drill Bit
    Price : negotiation
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 30000pcs per month
    Delivery Time : 10-22days
    Certification : ISO
    • Product Details
    • Company Profile

    Hight Quality T45 89mm Tungsten Carbide Threaded Button Bits

    Hight Quality T45 89mm Tungsten Carbide Threaded Button Bits


    Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.


    Product Name:

    different rock hardness drilling button bit

    Description:

    For different rock hardness mining,tunneling,quarrying button bit
    Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment.

    Material:

    Alloy steel bar and tungsten carbide bit

    MOQ:

    trial order 1-5pcs

    Body Type

    Normal type and retract type

    Thread type

    T45

    Diameter

    32mm-152mm

    Button bit shape

    Spherical and Ballistic

    Face shape

    Flat shape and Drop-center shape


    Button bit and Insert types
    Spherical Button Characteristics:
    1.Universal button
    2.Good wear resistance
    3.Best suited for hard ground
    4.27000-48000PSI(180 to 320Mpa)
    5.Suited for abrasive to very abrasive drilling conditions


    Specification:

    Diameter

    Buttons and Size (mm)

    Flushing hole

    Weight

    Part Number

    mm

    inch

    Front

    Gauge

    Angle

    Front

    Side

    kg

    Spherical

    89

    3 1/2

    4×13

    8×13

    40°

    2

    -

    3.3

    4148300718

    89

    3 1/2

    5×13

    8×13

    35°

    2

    -

    3.3

    4148300719

    89

    3 1/2

    6×11

    8×12

    35°

    2

    -

    3.3

    4148300720

    89

    3 1/2

    3×11, 2×11

    6×13

    35°

    3

    1

    3.3

    4148300721

    89

    3 1/2

    4×11, 1×11

    8×13

    35°

    4

    -

    3.3

    4148300722

    89

    3 1/2

    4×13, 1×13

    8×13

    35°

    4

    -

    3.3

    4148300723

    Ballistic

    89

    3 1/2

    5×13

    8×13

    35°

    2

    -

    3.3

    4148300734

    89

    3 1/2

    6×11

    8×12

    35°

    2

    -

    3.3

    4148300735

    89

    3 1/2

    3×11, 2×11

    6×13

    35°

    3

    1

    3.3

    4148300736

    89

    3 1/2

    4×11, 1×11

    8×13

    35°

    4

    -

    3.3

    4148300737

    89

    3 1/2

    4×13, 1×13

    8×13

    35°

    4

    -

    3.3

    4148300738


    Applications of rock drilling tools
    • Underground mining
    • Tunneling,quarrying

    Competitive Advantage
    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
