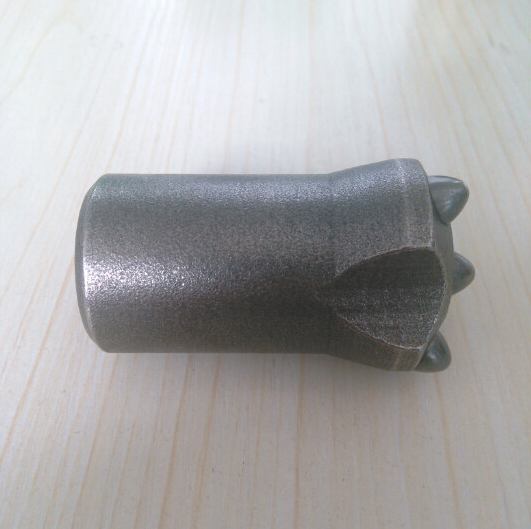

    7° Taper Button Drill Bit Diameter 40mm Gauge 4 x 8mm Tungsten Carbide

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : Rock button bit, 7° - 12° Taper button bit, dia 40mm, Front 2*7mm, Gauge 5*9mm
    Price : USD1-7 pieces
    Payment Terms : L/C, D/A, T/T, Western Union, D/P
    Delivery Time : 1-10 days
    Certification : ISO9001
    Supply Ability : 900000 pieces per month
    • Product Details
    • Company Profile

    7° Taper Button Drill Bit Diameter 40mm Gauge 4 x 8mm Tungsten Carbide

    7° Taper Button Drill Bit Diameter 40mm Gauge 4 x 8mm Tungsten Carbide

    • Suitable for small hole range
    • Widely used in Dimensional Stone Quarrying Industry
    • Widely used in Underground Mining Industry

    Description
    Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

    Applications
    • Dimensional Stone Industry
    • Underground Mining
    • Tunneling


    Competitive Advantage
    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



    specification

    <

    Tapered Button Bit , 7 ° , 11° , 12°
    Bit Dia.Buttons and Size (mm)Flushing HoleWeight
    mmFrontGaugeFrontSidekg
    1321x83x8110.24
    2332x75x7210.26
    3342x74x7110.29
    4352x75x8110.33
    5362x75x8110.37
    6381x83x9110.37
    7401x83x9110.38
    8412x75x9110.42
    9422x85x9110.43


    Chisel Bit, 7 ° , 11° , 12°
    Length (mm)Chisel Size (H x W) mmWeight (Kg)
    12610x70.17
    22810x70.18
    33013.5x80.22
    43213.5x80.24
    53413.5x80.27
    63613.5x80.3
    73813.5x80.33
    83815x90.33
    9403.5x9.20.38
    104015x9.80.38
    114213.5x9.20.41
    124215x9.80.41
    134313.5x9.20.42

    7° Taper Button Drill Bit Diameter 40mm Gauge 4 x 8mm Tungsten Carbide

    Company Profile
    KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

    • Hazardous environment
    • Acts, regulations, and other government guidelines that has to be followed
    • Significant differences in the way people work, mostly due to physical constraints
    • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
