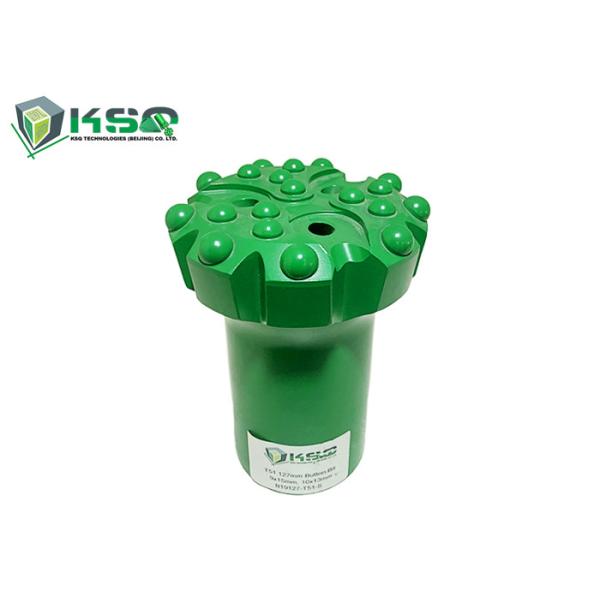

    T51 127 Mm Spherical Buttons Drop Center Rock Drill Bits

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : T51 127mm
    Certification : ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000pcs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    T51 127 Mm Spherical Buttons Drop Center Rock Drill Bits

    T51 127mm Spherical Buttons Drop Center Rock Drill Bits


    Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations
    (between 200 Mpa to 260 Mpa compressive strength).
    Featuring spherical tungsten carbide inserts that are known to have strong configuration against carbide fracture.

    Made with the high-quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.

    • Used in benching and long hole drilling.
    • The bit face design is ideal for medium-hard to hard abrasive rock


    TypeThread Button Bit
    Materialtungsten carbide
    UseOre Mining, quarry,mining,blasting,construction,open bit etc.
    Advantageshigh quality and factory prices
    Boby typeNormal type or retrac type
    ThreadR22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68
    Tungsten carbideSpherical, ballistic,Conical,Hemispherical
    Fact typeDrop Center, Flat Face, Convex, Concave, etc
    ColorAccording to your requirements

    Drill Rod

    Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.

    Thread Rod---R25,R28,R32,R38,T38,T45,T51.

    Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.


    Description

    T51 button bit


    Bit Dia.

    Buttons and Size (mm)

    Flushing Hole

    Weight


    mm

    Front

    Gauge

    Front

    Side

    kg

    1

    89

    3x11, 2x11

    6x13

    4

    -

    4.9

    2

    102

    3x13, 2x13

    6x14

    3

    1

    5.2

    3

    115

    6x14

    8x14

    2

    -

    6.8

    4

    127

    4x16, 2x13

    8x16

    4

    -

    7.5


    T51 127 Mm Spherical Buttons Drop Center Rock Drill BitsT51 127 Mm Spherical Buttons Drop Center Rock Drill BitsT51 127 Mm Spherical Buttons Drop Center Rock Drill BitsT51 127 Mm Spherical Buttons Drop Center Rock Drill Bits
