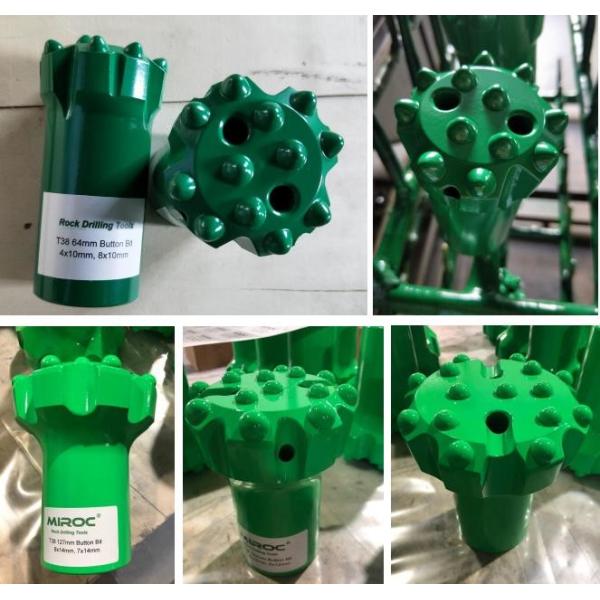

YK5 tungsten carbide Threaded button Drill Bit T38 with Dia102mm
For different rock hardness mining
Processing
CNC milling and proprietary heat treatment process
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength
and excellent wear resistance
High grade tungsten carbide inserts
T38 Thread Button Bit Specification
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number |
| mm | inch | Front | Gauge | Angle | Front | Side | kg |
| Spherical |
| 64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | - | 1.8 | 4148300705 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | 4148300706 |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 1.7 | 4148300707 |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | - | 1.9 | 4148300708 |
| 70 | 2 3/4 | 4×10, 1×10 | 8×11 | 30° | 4 | - | 1.9 | 4148300709 |
| 70 | 2 3/4 | 3×10, 1×10 | 6×12 | 35° | 3 | - | 1.8 | 4148300710 |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.4 | 4148300711 |
| 76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | 4148300712 |
| 76 | 3 | 3×11, 1×11 | 6×12 | 35° | 3 | 1 | 2.6 | 4148300713 |
| 76 | 3 | 4×11, 1×11 | 8×12 | 35° | 4 | - | 2.6 | 4148300714 |
| 76 | 3 | 4×11, 1×11 | 8×11 | 40° | 4 | - | 2.6 | 4148300715 |
| 89 | 3 1/2 | 4×13 | 8×13 | 40° | 2 | - | 3.3 | 4148300716 |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | - | 3.3 | 4148300717 |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 3.3 | 4148300718 |
| 89 | 3 1/2 | 3×11, 2×11 | 6×13 | 35° | 3 | 1 | 3.3 | 4148300719 |
| 89 | 3 1/2 | 4×11, 1×11 | 8×13 | 35° | 4 | - | 3.3 | 4148300720 |
| 89 | 3 1/2 | 4×13, 1×13 | 8×13 | 35° | 4 | - | 3.3 | 4148300721 |
| Ballistic |
| 64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | - | 1.8 | 4148300722 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | 4148300723 |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 1.7 | 4148300724 |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | - | 1.9 | 4148300725 |
| 70 | 2 3/4 | 4×10, 1×10 | 8×11 | 30° | 4 | - | 1.9 | 4148300726 |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.4 | 4148300727 |
| 76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | 4148300728 |
| 76 | 3 | 3×11, 1×11 | 6×12 | 35° | 3 | 1 | 2.6 | 4148300729 |
| 76 | 3 | 4×11, 1×11 | 8×12 | 35° | 4 | - | 2.6 | 4148300730 |
| 76 | 3 | 4×11, 1×11 | 8×11 | 40° | 4 | - | 2.6 | 4148300731 |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | - | 3.3 | 4148300732 |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 3.3 | 4148300733 |
| 89 | 3 1/2 | 3×11, 2×11 | 6×13 | 35° | 3 | 1 | 3.3 | 4148300734 |
| 89 | 3 1/2 | 4×11, 1×11 | 8×13 | 35° | 4 | - | 3.3 | 4148300735 |
| 89 | 3 1/2 | 4×13, 1×13 | 8×13 | 35° | 4 | - | 3.3 | 4148300736 |
We can design and manufacture the personalized products to meet
your specical apllication, such as changing the tungsten carbide
insert profile (spherical, ballistic, etc.), face profile (flat
face, drop center, etc.), and body type( Normal and retrac etc.).
Applications
R25, R28, R32, R38
Used in drifting and tunneling.
T38, T45, T51, ST58, ST68
Used in benching and long hole drilling.
Keywords
Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit,
Retrac Bit,
Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools
Rock Drilling Tools Brand MIROC®
The MIROC® Rock Drilling Tools product line by KSQ Tecnologies
(Beijing) Co.Ltd. is the result of years of advanced engineering,
precision manufacturing, and dedication to the use of high quality
materials.
MIROC® Rock Drilling Tools are used by many drilling professionals
related to mining, construction, tunneling, and quarrying projects
around the globe.
MIROC® Rock Drilling Tools include:
- Integral Rods
- Plug Hole Rods
- Tapered Drilling Tools
- Extension Drilling Tools
- Drifting and Tunneling Tools
- Reaming Tools
- Shank Rods
- Shank Adapters (Striking Bars)
- Down-the-hole (DTH) Bits
- Down-the-hole (DTH) Hammer
- PDC Bit
- Tricone Bits
