| Brand Name : | MIROC |
| Model Number : | Pilot Adapter Reaming Bit |
| Price : | negotiation |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability : | 30000pcs per month |
| Delivery Time : | 10 - 20 days |
T45 Drill Bit and Retrac drill bit For Mining / Construction , Tungsten Carbide Forging
Description:
This type of bit is used for making large cut holes in drifting and
tunneling. A smaller hole is first drilled and then reamed to the
final size in combination with a pilot adapter.
Color: Green,Blue or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Specification:
T45 Button bits, Retract skirt
| Diameter | T.C buttons | Flushing hole | Angle | Weight | |||
| mm | inch | Gauge x mm | Front x mm | Side | Front | Gauge | Kg |
| 76 | 3 | 6x12 | 4x11 | 1 | 2 | 40° | 3.08 |
| 76 | 3 | 6x13 | 3x12,1x11 | 1 | 3 | 35° | 3.16 |
| 76 | 3 | 8x12 | 4x12 | 1 | 2 | 35° | 3.15 |
| 76 | 3 | 8x12 | 5x11 | 1 | 2 | 35° | 3.09 |
| 89 | 31/2 | 8x13 | 4x13 | 1 | 2 | 35° | 4.52 |
| 89 | 31/2 | 8x13 | 4x11,1x11 | 1 | 4 | 35° | 4.35 |
| 89 | 31/2 | 8x13 | 4x11,2x9 | 1 | 4 | 35° | 4.28 |
| 89 | 31/2 | 8x14 | 5x12 | 1 | 2 | 35° | 4.58 |
| 89 | 31/2 | 8x13 | 6x12 | 1 | 2 | 35° | 4.42 |
| 89 | 31/2 | 9x12 | 6x10 | 1 | 3 | 35° | 4.62 |
| 102 | 4 | 8x15 | 4x15 | 1 | 2 | 35° | 7.38 |
| 102 | 4 | 8x14 | 4x12,1x12 | 1 | 4 | 35° | 7.25 |
| 102 | 4 | 8x14 | 4x12,2x12 | 1 | 4 | 35° | 7.28 |
| 102 | 4 | 8x14 | 6x12 | 1 | 2 | 35° | 7.15 |
| 102 | 4 | 9x13 | 8x13 | 1 | 3 | 35° | 7.42 |
| 115 | 41/2 | 8x15 | 4x13,2x13 | 1 | 4 | 35° | 9.54 |
| 115 | 41/2 | 8x15 | 7x14 | 1 | 2 | 35° | 9.75 |
| 115 | 41/2 | 9x14 | 8x14 | 1 | 2 | 35° | 9.72 |
| 127 | 5 | 8x16 | 7x14 | 1 | 2 | 35° | 12.15 |
| 127 | 5 | 9x16 | 8x14 | 1 | 3 | 35° | 14.42 |
Applications
• Underground mining
• Bench Drilling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using
state-of-the-art CNC machinery
and heat treatment

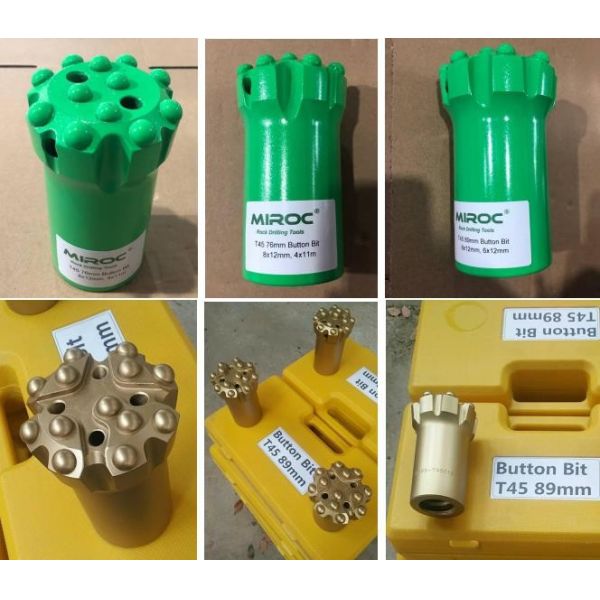

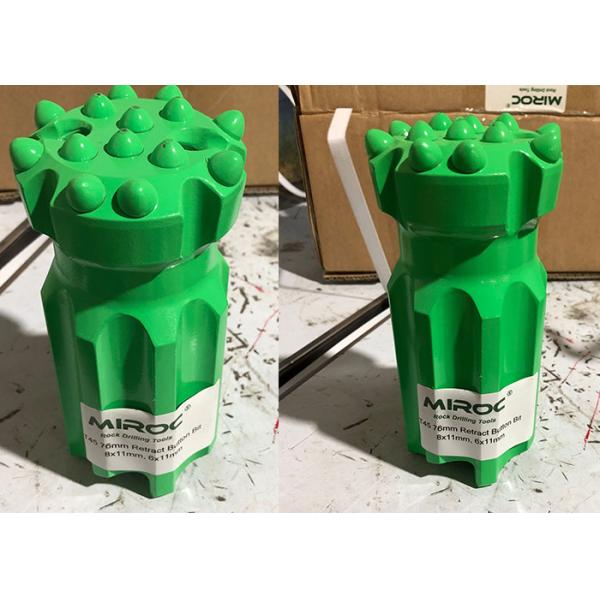

Photos:



Packing
