    API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm

    Ask Lasest Price
    Brand Name : MIROC DTH Rock Drilling Tools - Drill Tube
    Model Number : DTH Drill Pipe
    Certification : API
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 20000pcs per month
    Delivery Time : 10- 25 days
    • Product Details
    • Company Profile

    API REG Standard DTH Drilling Tools Drill Pipe Dia 76mm Drill Tube Length 3000mm

    Drill Pipe / Drill Tube Diameter 76mm Length 3m


    76mm - 3000mm Drill Pipe Information


    Blast hole Drill pipe

    Diameter: 76mm (3 Inch) OD

    Length: 3000mm (3m)

    Wall Thickness: 4mm

    Thread: 2 3/8" API REG Pin & 2 3/8" API REG Box

    Wrench flat: 65mm

    Material: 45# steel

    P/N4148301552

    Weight: 25kg

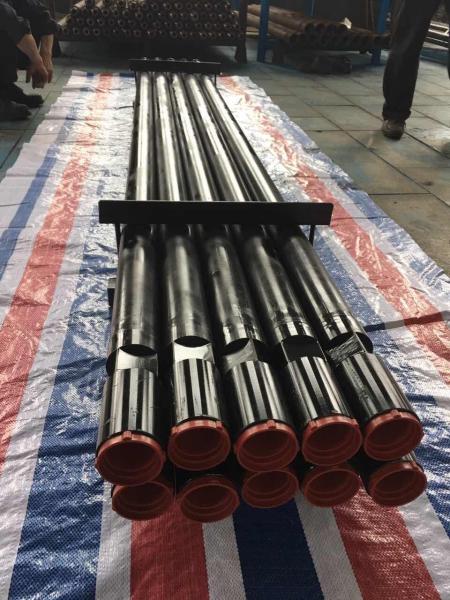

    Drill Pipe Photo:

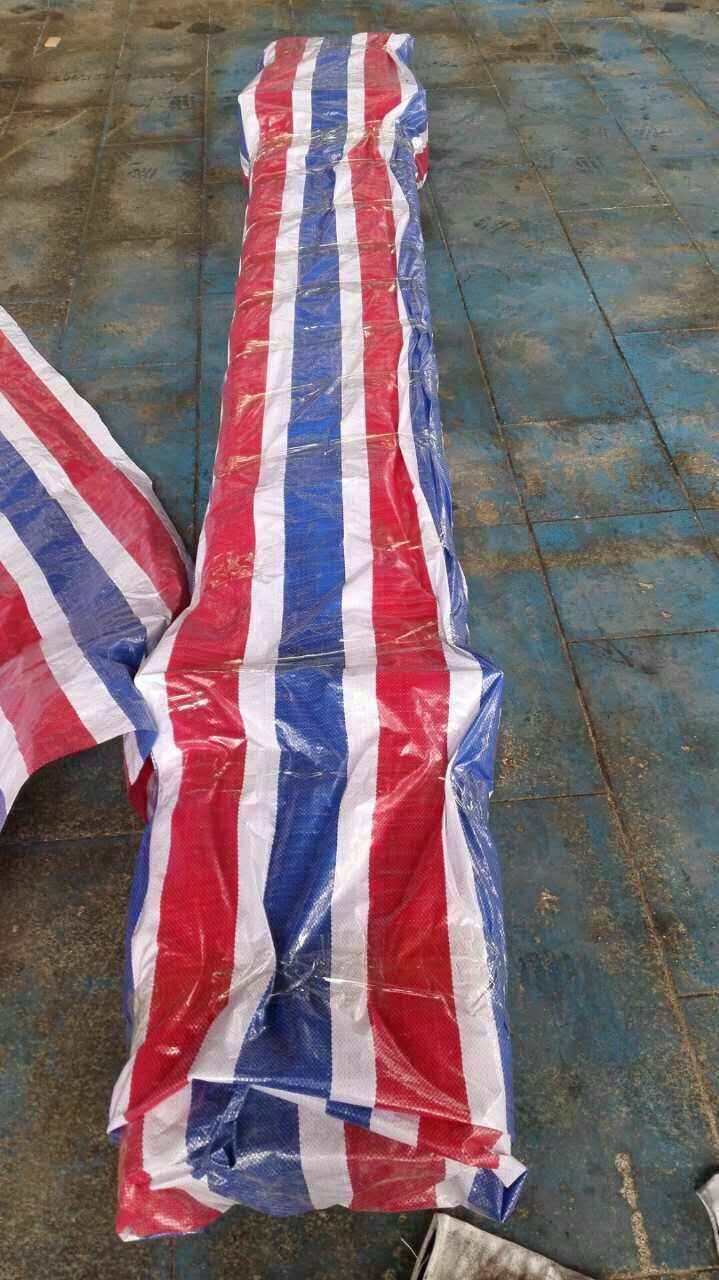

    Drill Tube Package Photo



    Drill Pipe Specification


    Feature Drill Pipe


    Diameter:


    76mm 89mm 102mm 114mm 127mm 140mm 156mm


    Thread:

    2 3/8" API REG,

    2 7/8" API REG,

    2 7/8" IF,

    3 1/2" API REG,

    3 1/2" BECO

    4 FH,

    2" Z Pin x 2" Z Box,

    RD 50-6,

    2 3/8" IF


    Length: 3m, 4m 5m 6m 8m 10m 12m


    Drill Pipe Description


    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.


    Drill Pipe Features:

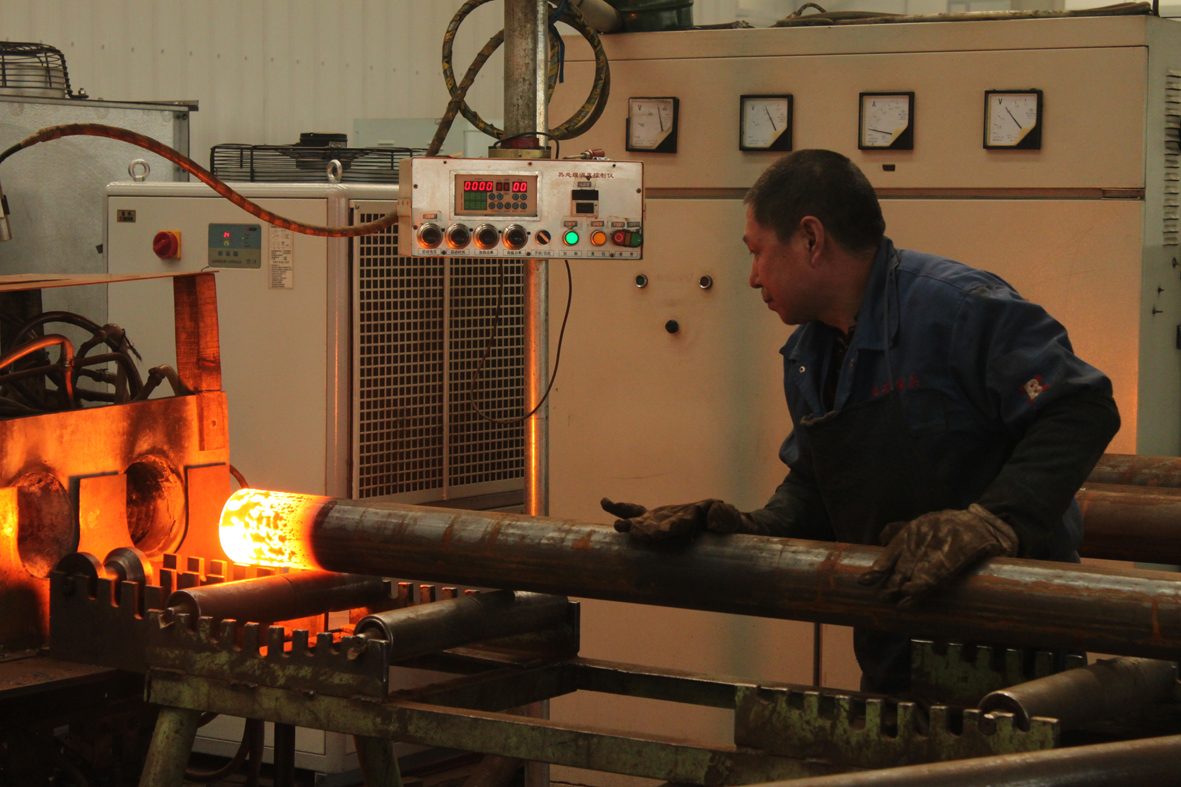

    Friction welded
    • Friction welding gives much stronger joints compared with electrode welding due to less risk of impure joints.


    Competitive Advantage

    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance


    More Drill Pipe Specification:

    DTH DRILL PIPES
    Outer diameterThreadWall thicknessLengthWrench flatWeightPart Number
    mminchmminchmmfootmminchkg
    API regular thread
    7632 3/8 API Reg5.52/910003 2/7572 1/4174148301544
    7632 3/8 API Reg5.52/915005572 1/4224148301545
    7632 3/8 API Reg5.52/920006 5/9572 1/4264148301546
    7632 3/8 API Reg5.52/930009 5/6572 1/4354148301547

    7632 3/8 API Reg
    5.5
    2/910003 2/7652 5/9174148301548
    7632 3/8 API Reg5.52/915005652 5/9224148301549
    7632 3/8 API Reg5.52/920006 5/9652 5/9264148301550
    7632 3/8 API Reg5.52/930009 5/6652 5/9354148301551

    7632 3/8 API Reg6.51/430009 5/6652 5/9464148301552
    7632 3/8 API Reg6.51/4450014 3/4652 5/9564148301553
    7632 3/8 API Reg6.51/4600019 2/3652 5/9734148301554

    893 1/22 3/8 API Reg5.52/910003 2/7652 5/9204148301555
    893 1/22 3/8 API Reg5.52/915005652 5/9254148301556
    893 1/22 3/8 API Reg5.52/920006 5/9652 5/9304148301557
    893 1/22 3/8 API Reg5.52/930009 5/6652 5/9404148301558

    893 1/22 3/8 API Reg6.51/410003 2/7652 5/9214148301559
    893 1/22 3/8 API Reg6.51/415005652 5/9264148301560
    893 1/22 3/8 API Reg6.51/420006 5/9652 5/9324148301561
    893 1/22 3/8 API Reg6.51/430009 5/6652 5/9454148301562
    893 1/22 3/8 API Reg6.51/4450014 3/4652 5/9654148301563
    893 1/22 3/8 API Reg6.51/4600019 2/3652 5/9844148301564
    F Thread
    Outer diameterThreadWall thicknessLengthWrench flatWeightPart Number
    mminchmminchmmfootmminchkg
    502F42×104.51/610003 2/7401 5/8-4148301565
    602 3/8F48×104.51/610003 2/7401 5/8-4148301566
    602 3/8F48×104.51/615005401 5/8- 4148301567
    602 3/8F48×104.51/620006 5/9401 5/8- 4148301568
    602 3/8F48×104.51/630009 5/6401 5/8- 4148301569


    Available in a variety of lengths, diameters, wall thicknesses, and thread configurations.


    Applications


    • Underground mining
    • Quarry benching operations
    • Water well drilling
