T38 T45 T51 Drill Shank Adapter For Ingersoll Rand YH50 YH60A YH65
YH70 YH65 RP YH80A YH80A RP
T38 Shank adapter for Ingersollrand YH 50 RP 560 mm P/N414832561
Ingersoll Rand YH 45, YH 50, YH 55
Thread: T38
Length: 560mm, 440mm
Shank Adapter for Ingersoll Rand Specification:
Shank Adapter
Manufactured from high-quality Alloy Steel and Heat Treated to give
high values and fatigue strength.
The task of the shank adapter is to transmit rotation torque, feed
force, impact energy and flushing medium to the drill string.
Male shank adapters/striking bar are generally better suited for
drifting, tunneling & extension applications where high bending
stresses are present.
Female shank adapters/striking bar are used when the drilling space
is limited and the total feed length is important (i.e.,
underground roof bolting)
Shank Adapter for Following Ingersoll Rand Rock Drill Model
| Rock Drill Manufacturer and Model |
| Ingersoll Rand 350 |
| Ingersoll Rand Hydrastar 200 |
| Ingersoll Rand VL 120, VL 140 |
| Ingersoll Rand VL 120, VL 140 |
| Ingersoll Rand EVL 130, VL 140 |
| Ingersoll Rand YD 90 M |
| Ingersoll Rand YH 45, YH50, YH55 |
| Ingersoll Rand YH 60A |
| Ingersoll Rand YH 65, YH70 |
| Ingersoll Rand YH 65 RP |
| Ingersoll Rand YH 80A |
| Ingersoll Rand YH 80A RP |

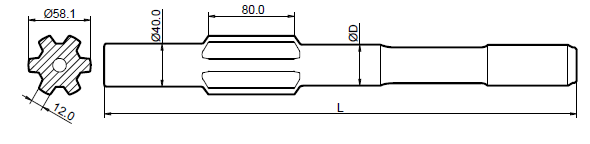

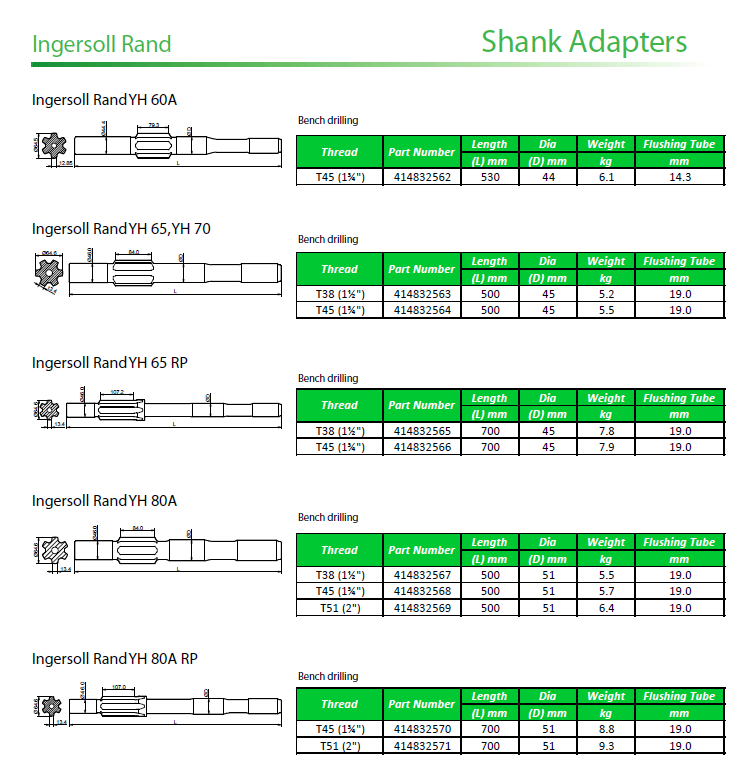

Shank Adapter Specification
| SHANK ADAPTER |
| Rock Drill Manufacturer and Model | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg |
| Ingersoll Rand 350 | R32 | 32 | 380 | 9.0 | 2.1 | 414832550 |
| Ingersoll Rand Hydrastar 200 | R32 | 45 | 351 | - | 3.7 | 414832551 |
| Ingersoll Rand VL 120, VL 140 | R32 | 44 | 381 | 14.3 | 3.4 | 414832552 |
| R38 | 44 | 381 | 14.3 | 3.6 | 414832553 |
| T38 | 44 | 381 | 14.3 | 3.7 | 414832554 |
| T45 | 44 | 381 | 14.3 | 3.9 | 414832555 |
| Ingersoll Rand VL 120, VL 140 | T38 | 44 | 446 | 14.3 | 4.0 | 414832556 |
| Ingersoll Rand EVL 130, VL 140 | T38 | 44 | 350 | 14.3 | 3.9 | 414832557 |
| T45 | 44 | 350 | 14.3 | 4.2 | 414832558 |
| Ingersoll Rand YD 90 M | R32 | 44 | 350 | 9.0 | 2.6 | 414832559 |
| R32 | 38 | 350 | 12.7 | 2.5 | 414832560 |
| Ingersoll Rand YH 45, YH50, YH55 | T38 | 38 | 440 | 16 | 3.8 | 414832561 |
| Ingersoll Rand YH 60A | T45 | 38 | 530 | 14.3 | 6.1 | 414832562 |
| Ingersoll Rand YH 65, YH70 | T38 | 44 | 500 | 19.0 | 5.2 | 414832563 |
| T45 | 45 | 500 | 19.0 | 5.5 | 414832564 |
| Ingersoll Rand YH 65 RP | T38 | 45 | 700 | 19.0 | 7.8 | 414832565 |
| T45 | 45 | 700 | 19.0 | 7.9 | 414832566 |
| Ingersoll Rand YH 80A | T38 | 45 | 500 | 19.0 | 5.5 | 414832567 |
| T45 | 51 | 500 | 19.0 | 5.7 | 414832568 |
| T51 | 51 | 500 | 19.0 | 6.4 | 414832569 |
| Ingersoll Rand YH 80A RP | T45 | 51 | 700 | 19.0 | 8.8 | 414832570 |
| T51 | 51 | 700 | 19.0 | 9.3 | 414832571 |
Hydraulic shanks generally have at least a 5 to 14-spline
configuration. Pneumatic shanks tend to have internal or
through-flushing. They can be identified by their lugs or 4-spline
configuration.
Competitive Advantage
- High strength chromium-molybdenum steel with high fatigue strength
and excellent wear resistance.
- The accurate dimension of thread perfectly matches the rock drill
- Work reliably and very cost-effective
Applications
• Bolting, drifting
• Bench drilling
• Production drilling
We can design and manufacture personalized products to meet your
special application, such as changing the length, diameter, etc.
