    CIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH Hammers

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : CIR90
    Certification : API
    Price : Negotiation
    Supply Ability : 2000 pieces per month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    CIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH Hammers

    CIR90 DTH Hammer with low air pressure 0.5-0.7MPa Geological Drilling DTH Hammers


    Specification:

    • standard type, no foot valve
    • length: 800mm
    • external diameter: 80mm,
    • drilling hole range: 85mm-110mm,
    • working pressure: 0.5-0.7MPa,
    • air consumption: 0.7MPa 8m³/min
    • weight: around 20kg

    Drilling Diameter(mm)

    Hammer Length(mm)

    External Diameter(mm)

    Weight(kg)

    φ85-φ110

    800(without bit)

    80

    20(without bit)

    Working Pressure(Mpa)

    Air Consumption(m³/min): 0.7Mpa: 8m³/min

    0.5-0.7

    Bit Shank

    CIR 90


    CIR90 DTH Hammer with high air pressure 0.6-1.5MPa

    • length: 770mm
    • external diameter: 80mm, drilling hole range: 88-110mm
    • working pressure: 0.6-1.5Mpa
    • air consumption: 0.8Mpa 4m3/min
    • bit shank: Cir90
    • weight: around 20kg

    Drilling Diameter(mm)

    Hammer Length(mm)

    External Diameter(mm)

    Weight(kg)

    φ88-φ110

    770(without bit)8020(without bit)
    Working Pressure(Mpa)Air Consumption(m³/min): 0.8Mpa: 4m³/min
    0.6-1.5Bit Shank

    CIR 90


    Product

    DTH Button Bits

    Low Air Pressure

    CIR80, CIR90

    3’’

    DHD3.5, M30,

    4’’

    DHD340, SD4,QL40, M40

    5’’

    DHD350, SD5,QL50, M50

    6’’

    DHD360, SD6,QL60, M60

    8’’

    DHD380, SD8,QL80, M80

    Color

    Green, Gold, Black or based on customer requirements.

    MOQ:

    No MOQ required for testing and trial order


    Advantages:

    1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.

    2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

    3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

    4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

    5. Interchangeable with DTH bit and drill pipe

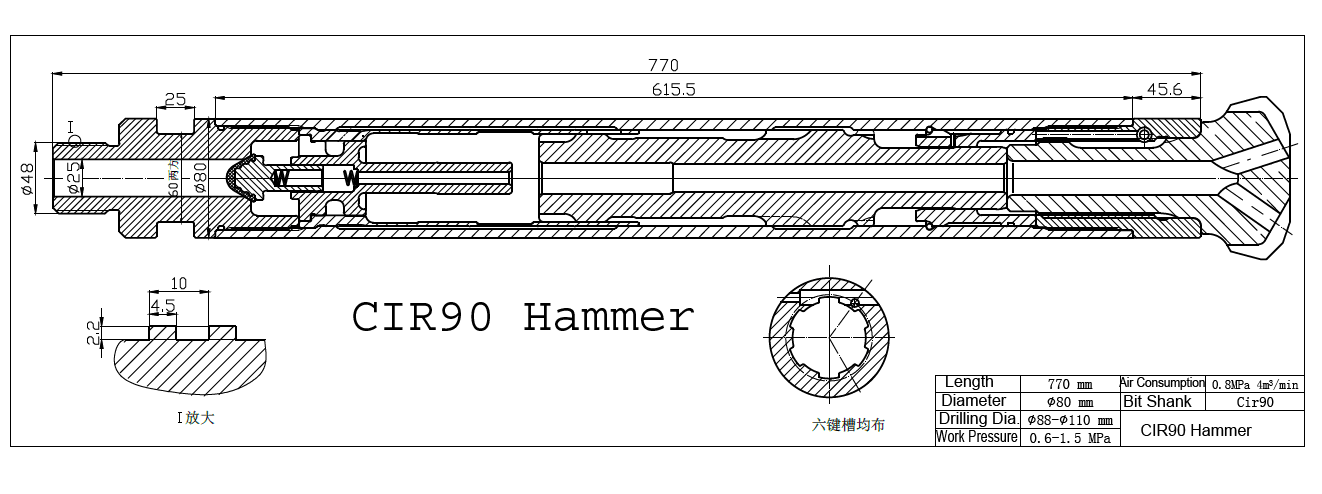

    CIR90mm High Air Pressure DTH Hammer Basic Drawing:

    CIR90 DRILL BIT

    CIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH HammersCIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH Hammers

    CIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH HammersCIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH HammersCIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH Hammers
