Underground Mining Load Haul Dumper Lhd Mining Equipment 2 Cubic
Meters
Product Details
The trusted workhorse of miners and tunneling professionals, the
RL-2 Load-Haul-Dump Machine is ideal for small to medium scale rock
excavation operations. The RL-2 maintains the simple yet very
robust design tenets of what a mining equipment should be - it has
a small footprint and turning radius suitable for small envelope
sizes, high proven reliability, and straight-forward mechanical
components that are easy to maintain.
Outline Dimesion Drawing:
Product Specification Information:
| Bucket Capacity | 2 m3 | Engine | DEUTZ F6L912W |
| Payload Capacity | 4000kg | Torque Converter | DANA C272 |
| Dimension | L 7300mm | Power Transmission | DANA R32000 |
| W 1840mm | Brakes system | SAHR Brake |
| H 1960mm | Axles | Xuzhou Meitong |
| Max. Lifting Height | 4070±100 mm | Unloading Angle | 40° |
| Max. Unloading Height | 1880mm | Rear axle swing angle | ±6°~±8° |
| Min. Unloading Distance | ≥740 mm | Weight | 12900kg |
| Min. Ground Clearance | ≥250mm | Hydraulic hoses | JIG 37 |
| Running Speed (full load) | 1th Gear 3.8±0.5 km/h | Min. Turning Radius | Outer 6500mm |
| 2th Gear 7.8±0.5 km/h | | Inner 4255mm |
| 3th Gear 17.5±1.0 km/h | Departure Angle | 15° |

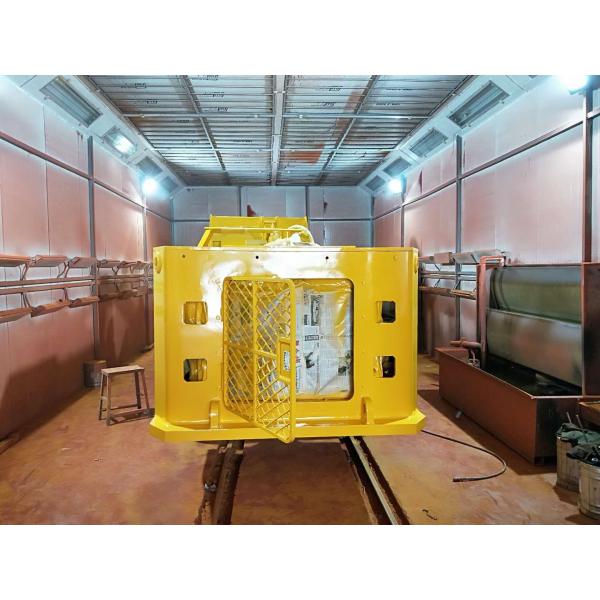

Ready to Customer:
Applications of Load Haul Dump
Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling
Our Services
ROXMECH® Rock Excavation and Service/Support Equipment include:
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series
MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer
Company Information
ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line
consisting of specialized
equipment for use in underground mining and tunneling works, such
as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck,
Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work
with mining
operations in China and some parts of the world where mining is the
lifeblood of the econ-
omy. In every product we build, our reputation and experience can
be seen. That’s the rea-
son to choose us if you are looking to improve your productivity
and reduce costs.
