    120-130mm Reverse Circulation Drill Bit And Shroud Of RE542 Hammer

    Ask Lasest Price
    Brand Name : MIROC down the hole hammer drill tool
    Model Number : DTH Button Bit
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 20000 pieces per month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    120-130mm Reverse Circulation Drill Bit And Shroud Of RE542 Hammer

    120~130mm Reverse Circulation Drill Bit And Shround Of RE542 Hammer


    Product Description

    Reverse circulation is achieved by blowing air down the annulus of the rod, the differential pressure creating air lift of the water and cuttings up the inner tube which is inside each rod. It reaches the deflector box at the top of the drill string then moves through a sample hose which is attached to the top of the cyclone.

    The drill cuttings travel around the inside of the cyclone until they fall through an opening at the bottom and are collected in a sample bag. For any drill hole there will be a large number of sample bags, each one marked to record the location and drilling depth that the sample was obtained.

    The collected series of sample bag cuttings are later taken for analysis to determine the mineral composition of the drill hole. The analysis results of each individual bag represents the mineral composition at a particular sample point in the drill hole. Geologists can then survey the drilled ground analysis and make decisions about the value of the overall mineral deposit.

    RE542 RC Hammer Technical Parameters

    Length(Without Bit)Weight(Without Bit)External Diameter(mm)
    1191mm55.4kg109.5mm
    Working PressureImpact Rate At 17 barSpeed Recommended
    1.5-3.5 Mpa35Hz25-40rpm
    Bit ShankHole RangeConnection Thread (top sub-drill pipe)
    RE542113mm-130mm

    3.5" /4" Remet

    4"Metzke

    Reference Air Consumption(m³/min)
    1.7 Mpa2.4 Mpa3.0 Mpa
    14 m³/min19 m³/min24 m³/min

    Drill Bit And Shround Of RE542 RC Hammer

    NO.

    Head Diameter

    (mm)

    Gauge

    buttons

    Front buttons

    Gauge button

    angle

    Flushing holeweight(kg)

    Shround

    (mm)

    1φ1208xφ144xφ14,3xφ1335°2xφ2410.5φ118
    2φ1208xφ146xφ14,3xφ1335°2xφ2410.6φ118
    3φ1278xφ144xφ14,3xφ1335°2xφ2410.9φ125
    4φ1278xφ146xφ14,3xφ1335°2xφ2411.0φ125
    5φ1308xφ164xφ14,3xφ1335°2xφ2411.1φ128
    6φ1308xφ165xφ14,3xφ1335°2xφ2411.2φ128
    120-130mm Reverse Circulation Drill Bit And Shroud Of RE542 Hammer

    Pictures

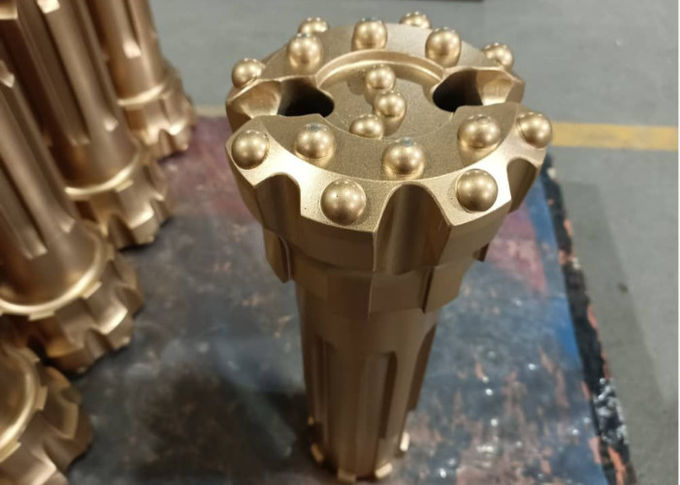

    120-130mm Reverse Circulation Drill Bit And Shroud Of RE542 Hammer

    120-130mm Reverse Circulation Drill Bit And Shroud Of RE542 Hammer120-130mm Reverse Circulation Drill Bit And Shroud Of RE542 Hammer
