    7 Degree 34mm Rock Drilling Tungsten Carbide Tapered Button Bit

    7 Degree 34mm Rock Drilling Tungsten Carbide Tapered Button Bit

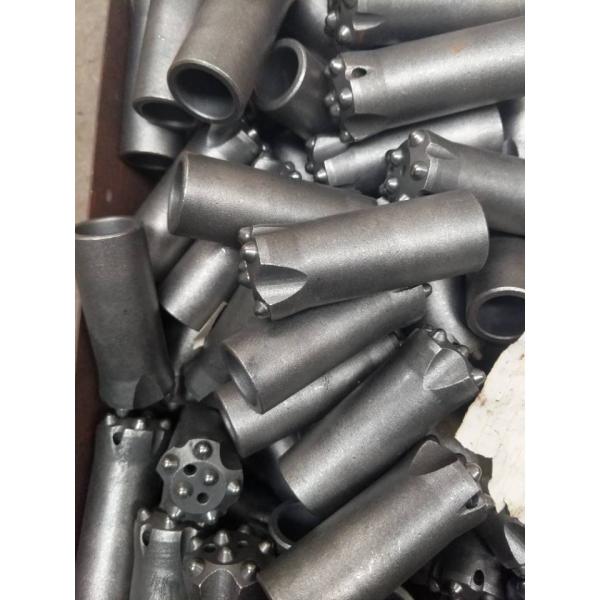

    Tapered Button Bits:
    We offer high quality of tapered button bits & tapered drilling equipments, these tapered drilling button bits are made with high quality of raw material through special heat treatment, various type suitable for afferent work site. The diameter of tapered bits is from 28mm to 43mm with 4 6 7 11 12 taper degree. The deliver capacity are very strong and can completely meet customers' requirements on th design.


    Features: It adopts mature technology, high-quality steel and alloy, high toughness and high wear resistance, high production efficiency and low cost.

    rock drilling button bits are widely used in all kinds of mining, drilling, quarrying, engineering, construction, water well drilling, oil exploring etc.


    Product Name:Tungsten carbides tapered drill bit
    TypesRock cross drill bit, Tapered cross bits, Tapered button bits/ 34mm button drill bit
    Application::Use in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
    Feature:Tapered drill bits connect tapered drill steel of rock drill for drilling holes
    Material:High quality carbide and high quality steel
    MOQ:5pcs
    We can design and manufacture according to your requirement of diameter, number air holes and carbide button shape.
    Types of drill bitsDiameter (mm)Taper Angle (Degree)Length (mm)
    Tapered chisel bits20/22/28/30/32/34/36/38/404 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree50/55/60/71/80
    Tapered cross bits24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/5550/55/60/71/80
    Tapered button bits28/29/30/32/33/34/35/36/37/38/40/41/42/4550/55/60/71/80

    Small Hole Drilling Tools, Tapered Tools, 7 Degree
    MIROC Button Bits,Short Skirt, By KSQ Technologies

    Bit Dia

    Button and Size(mm)

    Flushing Hole

    Weight

    Part Number

    Product Code

    mm

    inch

    Front

    Gauge

    Angle

    Front

    Side

    kg

    32

    1 1/4

    1x8

    3x8

    35°

    1

    1

    0.24

    4148300157

    BS432-7D-22

    36

    1 3/7

    1x8

    3x9

    40°

    1

    1

    0.37

    4148300161

    BS436-7D-22

    38

    1 1/2

    1x8

    3x9

    35°

    1

    1

    0.37

    4148300163

    BS438-7D-23

    40

    1 4/7

    1x8

    3x9

    30°

    1

    1

    0.38

    4148300166

    BS440-7D-23-1

    40

    1 4/7

    1x9

    3x10

    30°

    1

    1

    0.4

    4148300167

    BS440-7D-23-2

    40

    1 4/7

    1x9

    3x9

    35°

    1

    1

    0.4

    4148300168

    BS440-7D-23-3

    42

    1 2/3

    1x8

    3x9

    30°

    1

    1

    0.4

    4148300170

    BS442-7D-23-1

    42

    1 2/3

    1x9

    3x10

    30°

    1

    1

    0.43

    4148300171

    BS442-7D-23-2

    42

    1 2/3

    1x9

    3x9

    35°

    1

    1

    0.43

    4148300172

    BS442-7D-23-3
